j41f-40p常温截止阀
产品规范 |  |
主要零部件材料 |

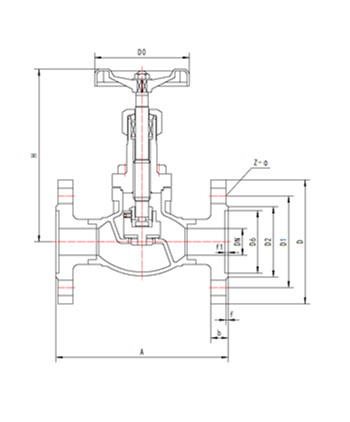

外型尺寸与连接尺寸
产品型号 | j41f-40p常温截止阀 | 重量 (kg) | ||||||||||||
产品代号 | 通径 dn(mm) | 尺寸(mm) | ||||||||||||
a | h1 | h2 | d | d1 | d2 | d6 | z-ф | b | f | f1 | d0 | |||
422j10ab2a4 | 10 | 130 | 131 | 127 | 90 | 60 | 40 | 35 | 4-14 | 16 | 2 | 3 | 75 | 2.4 |
422j15ab2a4 | 15 | 130 | 137 | 130 | 95 | 65 | 45 | 40 | 4-14 | 16 | 2 | 3 | 75 | 2.7 |
422j20ab2a4 | 20 | 150 | 167 | 157 | 105 | 75 | 55 | 51 | 4-14 | 16 | 2 | 3 | 100 | 3.9 |
422j25ab2a4 | 25 | 160 | 172 | 160 | 115 | 85 | 65 | 58 | 4-14 | 16 | 2 | 3 | 100 | 4.5 |
422j32ab2a4 | 32 | 180 | 207 | 191 | 135 | 100 | 78 | 66 | 4-18 | 18 | 2 | 3 | 120 | 7.3 |
422j40ab2a4 | 40 | 200 | 220 | 200 | 145 | 110 | 85 | 76 | 4-18 | 18 | 2 | 3 | 120 | 8.1 |
422j50ab2a4 | 50 | 230 | 275 | 250 | 160 | 125 | 100 | 88 | 4-18 | 20 | 3 | 4 | 160 | 14.3 |
