dj41f-16p低温截止阀
产品规范 |  |
主要零部件材料 |

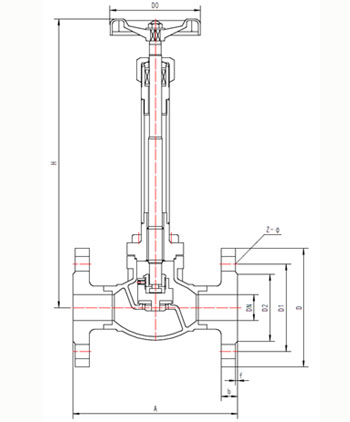

外型尺寸与连接尺寸
产品型号 | dj41f-16p低温截止阀 | 重量 (kg) | ||||||||||
产品代号 | 通径 dn(mm) | 尺寸(mm) | ||||||||||
a | h1 | h2 | d | d1 | d2 | z-ф | b | f | d0 | |||
222j10ab2a3 | 10 | 130 | 253 | 247 | 90 | 60 | 40 | 4-14 | 16 | 2 | 75 | 3.2 |
222j15ab2a3 | 15 | 130 | 268 | 260 | 95 | 65 | 45 | 4-14 | 16 | 2 | 75 | 3.8 |
222j20ab2a3 | 20 | 150 | 307 | 297 | 105 | 75 | 55 | 4-14 | 16 | 2 | 100 | 5.5 |
222j25ab2a3 | 25 | 160 | 323 | 310 | 115 | 85 | 65 | 4-14 | 16 | 2 | 100 | 5.9 |
222j32ab2a3 | 32 | 180 | 362 | 346 | 135 | 100 | 78 | 4-18 | 18 | 2 | 120 | 7.1 |
222j40ab2a3 | 40 | 200 | 380 | 360 | 145 | 110 | 85 | 4-18 | 18 | 2 | 120 | 11.2 |
222j50ab2a3 | 50 | 230 | 445 | 420 | 160 | 125 | 100 | 4-18 | 20 | 3 | 160 | 17.5 |
