dh61f-40p低温止回阀
产品规范 |  |
主要零部件材料 |

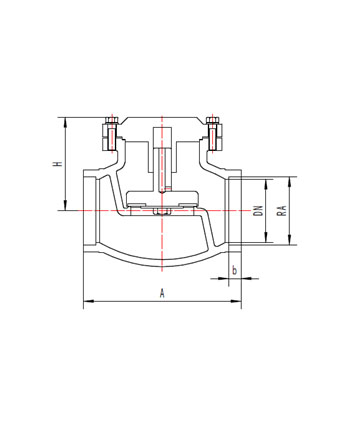

外型尺寸与连接尺寸
产品型号 | dh61f-40p低温止回阀 | 重量 (kg) | ||||
产品代号 | 通径 dn(mm) | 尺寸(mm) | ||||
a | h | b | ra | |||
433h65aba3 | 65 | 180 | 110 | 15 | 76.5 | 9.3 |
433h80aba3 | 80 | 210 | 135 | 15 | 89.5 | 16.4 |
433h100aba3 | 100 | 250 | 150 | 20 | 108.5 | 21.3 |
433h125aba3 | 125 | 300 | 175 | 25 | 133.5 | 29.6 |
433h150aba3 | 150 | 350 | 200 | 25 | 159.5 | 41.7 |
433h200aba3 | 200 | 430 | 235 | 25 | 220 | 62.8 |
