产品规范 |  |
主要零部件材料 |

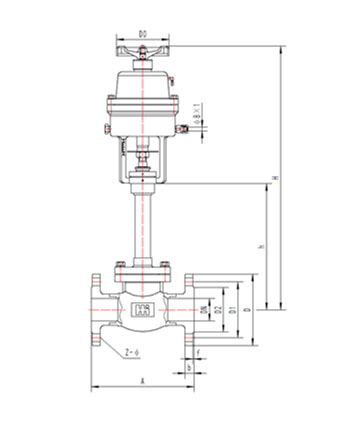

外型尺寸与连接尺寸
产品型号 | dj641f-25p低温紧急切断阀 | 重量 (kg) | ||||||||||
产品代号 | 通径 dn(mm) | 尺寸(mm) | ||||||||||
a | h | h | d | d1 | d2 | z-ф | b | f | d0 | |||
322e20ab2a3p | 20 | 150 | 400 | 200 | 105 | 75 | 55 | 4-14 | 16 | 2 | 100 | 7.9 |
322e25ab2a3p | 25 | 160 | 400 | 200 | 115 | 85 | 65 | 4-14 | 16 | 2 | 100 | 8.8 |
322e32ab2a3p | 32 | 190 | 468 | 204 | 135 | 100 | 78 | 4-18 | 18 | 2 | 120 | 14.5 |
322e40ab2a3p | 40 | 200 | 523 | 230 | 145 | 110 | 85 | 4-18 | 18 | 2 | 120 | 15.4 |
322e50ab2a3p | 50 | 230 | 523 | 230 | 160 | 125 | 100 | 4-18 | 20 | 3 | 120 | 23.8 |
322e65ab2a3p | 65 | 290 | 651 | 250 | 180 | 145 | 120 | 4-18 | 22 | 3 | 120 | 28.5 |
322e80ab2a3p | 80 | 310 | 736 | 320 | 195 | 160 | 135 | 8-18 | 22 | 3 | 160 | 42.1 |
322e100ab2a3p | 100 | 350 | 736 | 320 | 215 | 180 | 155 | 8-18 | 24 | 3 | 160 | 64.4 |
322e125ab2a3p | 125 | 400 | 1020 | 470 | 245 | 210 | 185 | 8-18 | 28 | 3 | 300 | 88.6 |
322e150ab2a3p | 150 | 480 | 1050 | 500 | 280 | 240 | 210 | 8-23 | 30 | 3 | 300 | 125.4 |
322e200ab2a3p | 200 | 600 | 1150 | 600 | 335 | 295 | 265 | 12-23 | 34 | 3 | 300 | 191.1 |
